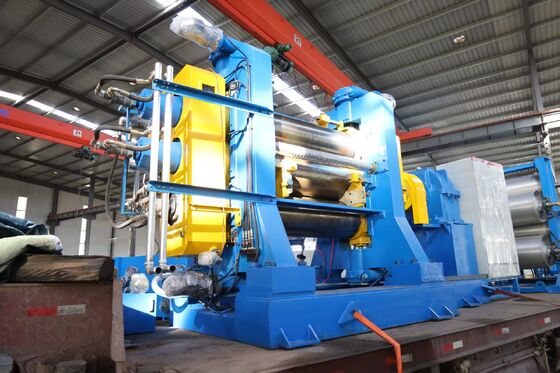

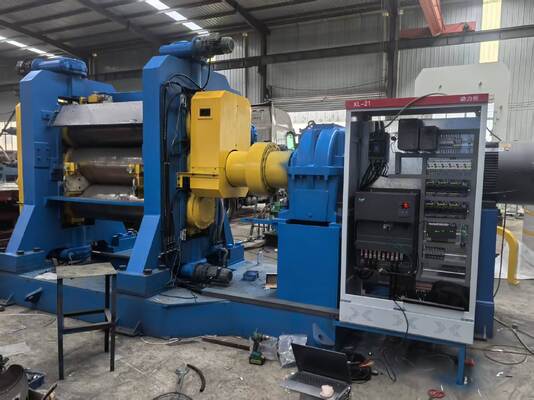

Automatic PLC High-quality 3-roll Rubber Calenders Are Used In Motorcycle Tyre Tread Production Lines.

Nome da marca:	Beishun
Número do modelo:	XY-3I(Γ) 550×1500
MOQ:	1 CONJUNTO
preço:	Negociável
Condições de pagamento:	L/C,T/T
Capacidade de abastecimento:	30 conjuntos/60 dias

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Qingdao

Certificação:

ISO/CE

Tensão:

220V/380V/400V/440/

Aquecimento:

Energia elétrica / petróleo / vapor

Fonte de energia:

Motor elétrico

Máquina de calendário:

Máquina do calendário de três rolos

Caixa de velocidades:

Redutor duro da engrenagem

Período de garantia:

12 meses

Tipo de máquina:

máquina de calendário

Sistema de vácuo:

Opcional

Largura dos produtos:

100-500mm

Rolo do material:

Ferro fundido gelado

Taxa de Fricção:

1: 1: 1 / 0,733: 1: 1 / 0,733: 1: 0,733

Modo de resfriamento:

Água

Relação da velocidade do rolo:

1: 1: 1: 1

Consumo de energia:

1 / 3 da capacidade instalada

Tipo de marketing:

Novo produto 2020

Tipo:

três rolos

Detalhes da embalagem:

40GP/OT

Destacar:

automatic PLC rubber calender machine

3-roll rubber calender for tyre tread

motorcycle tyre production calender machine

Descrição do produto

Automatic PLC High-Quality 3-Roll Rubber Calenders for Motorcycle Tyre Tread Production

Three-roll calender machines are precision engineered for motorcycle tyre tread production lines, offering reliable performance and exceptional film quality.

Primary Applications

This calendering machine is designed for calendering films and applying/coating glue on textiles. Available in various configurations including two-roll, three-roll, four-roll, and five-roll models, with three-roll and four-roll calenders being the most commonly used in industrial applications.

Key Structural Features

Integral welded base with annealing treatment ensures exceptional stability and vibration resistance
Rolling bearings at both roller ends provide high precision film production and extended equipment lifespan
Oil lubrication system with thin oil supply features automatic protection - main unit cannot operate without activated lubrication
Flexible adjustment options including electrically controlled or manual adjustment systems
Cold-hardened alloy cast iron rollers with mirror-smooth surface finishes available upon request
Hard-toothed box-type reducer ensures long service life and minimal operational noise

Technical Specifications

Model	XY-3I(Γ) 230×630	XY-3I(Γ) 252×720	XY-3I(Γ) 360×1120	XY-3I(Γ) 400×1200	XY-3I(Γ) 450×1400	XY-3I(Γ) 550×1500	XY-3I(Γ) 610×1730	XY-3I(Γ) 710×1800	XY-3I(Γ) 710×2130	XY-3I(Γ) 800×2500	XY-3I(Γ) 860×2500
Roll diameter (mm)	230	252	360	400	450	500	610	710	710	800	860
Roll length (mm)	630	720	1120	1200	1400	1500	1730	1800	2130	2500	2500
Roller speed ratio	1:1:1 1:1.2:1	1:1:1	1:1:1 0.733:1:1 0.733:1:0.733	1:1:1 1:1.383:1.383 1:1.383:1	1:1:1 1:1.5:1	1:1:1 1:1.5:1	1:1:1 1:1.4:1	0.5~1	1:1:1	0.5~1	0.5~1
Middle roller linear speed (m/min)	0.8-8	2-15.9	3-20	3-26.39	2.62-26.2	3-30	5.4-54	4-40	8-50	3-30	4-40
Adjustable range (m)	0-7	0-10	0-10	0-10	0-10	0-10	0-20	0-30	0-20	0-30	0-30
Minimum product thickness (mm)	0.2	0.2	0.2	0.2	0.2	0.2	0.15	0.2	0.15	0.2	0.5
Product width (mm)	500	550	920	1200	1250	1300	1500	1600	1900	2200	2200
Motor power (KW)	7.5	22	45	55	75	110	160	90k2, 110k1	185	132k3	132k3
Dimensions L×W×H (mm)	3168×890×1830	3950×1720×1210	6500×1500×2440	6300×1500×2440	7320×2200×2900	7550×2400×3800	7010×3950×3730	9950×3050×4540	7650×4560×4080	11400×3200×5050	12000×3200×5100
Weight (t)	~3	~5.5	~14	~18	~21	~35	~42	~90	~67	~110	~130
